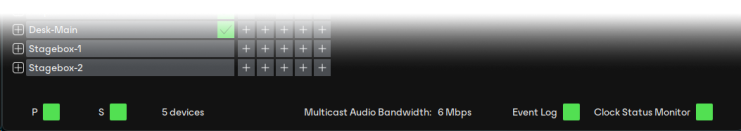

Status Bar

The Status Bar displays the following information:

  • P: The current status of the Primary network. Green indicates that Dante Controller is currently connected to the primary Dante network. Red indicates a problem with the connection.
  • S: The current status of the Secondary Dante network. Only displayed where a secondary network is connected.
  • The number of discovered devices on the network
  • Audio Multicast Bandwidth: The current Dante audio multicast bandwidth on the connected networks for unmanaged (un-enrolled) devices. Note that there may be network traffic from other sources that is not included in the multicast bandwidth reading.
  • Event Log: Indicates the current status of the event log. Click the icon to open the Events View.
  • Clock Status Monitor: Indicates the current status of the Clock Status Monitor. Click the icon to open the Clock Status Monitor.
